Home > Order Faqs > Packing

Caring Circuit's packing of electronic pcb is strong enough to ship anywhere all over the world.Detailed pcb packing systems are listed.

Packing Way

Inner packing: Vacuum packing+ dryer

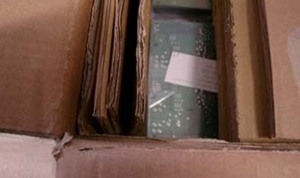

Outer packing: vacuum package horizontally, space with card paper fulfilled, standard cartons

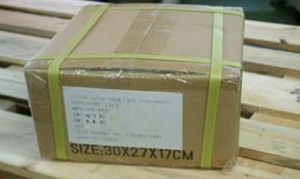

Clean carton in good condition, sealed with scotch tape, 4 knitting strips around as follows.

Every vacuum package weight won't exceed 4kilogram, every carton weight won't exceed 18kilogram

X-out panels with same quantity are packed together, marking quantity of ok boards.

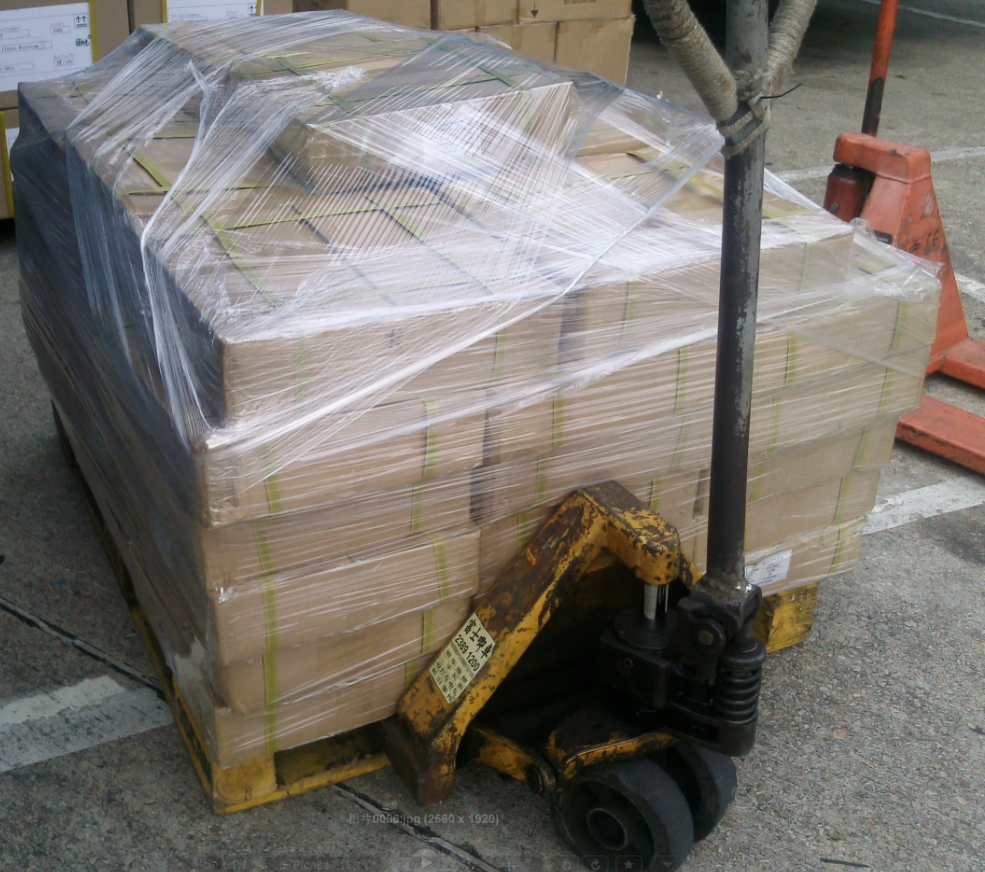

Pictures of packing

Label

Inner label on vacuum package

Outer label on carton

"Outgoing reports included" is labeled on the carton if there is.

Delivery Reports

Final Inspection Report

Microsection Report

Dimension Report

E-test Report

Solderability Test Report

Every new P/N( incl. sample,mass production, new version of sample, new version of mass production) should be delivered with solder sample and microsection.

Rough Weight of PCB

Layer	Specification	kilogram/sq.m
1L	1.60mm FR4 1OZ	3.22
1L	1.60mm FR4 2OZ	3.55
2L	0.5mm FR4 1OZ	1.51
	1.0mm FR4 1OZ	2.37
	1.0mm FR4 2OZ	2.60
	1.0mm FR4 3OZ	3.45
	1.2mm FR4 0.5OZ	2.46
	1.2mm FR4 1OZ	2.69
	1.6mm FR4 1OZ	3.55
	1.6mm FR4 2OZ	3.88
	1.6mm FR4 3OZ	4.05
	1.6mm FR4 6OZ	4.54
	2.0mm FR4 1OZ	4.41
	2.0mm FR4 2OZ	4.74
	2.4mm FR4 1OZ	5.26
4L	1.2mm FR4 0.5OZ	2.70
	1.6mm FR4 1.OZ	3.88
	1.6mm FR4 2OZ	4.54
	1.6mm FR4 3/2OZ	7.55
	2.0mm FR4 1OZ	4.74
	2.0mm FR4 2OZ	5.40
	3.2mm FR4 2/2OZ	7.30
6L	1.0mm FR4 1OZ	3.29
	1.6mm FR4 1OZ	4.15
	1.6mm FR4 2OZ	5.11
	2.0mm FR4 1/1OZ	5.00
8L	1.6mm FR4 1.OZ	6.00
10L	1.6mm FR4 1.OZ	8.00
12L	1.6mm FR4 1.OZ	10.00
