Home > Products > 10 Layer above PCBs

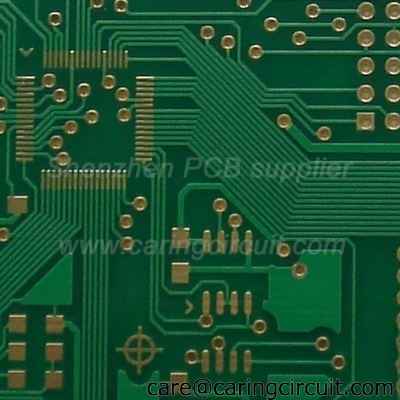

10L electric circuits NO.:10L-001

Product Name:10L electric circuits
Model No.:10L-001
Product Abstract:

electric circuits

electric circuit

【Printing】【Close】

Details

Quick Details

Brand Name	Caring circuit
Place of Origin	Shenzhen, China
Base Material	10L,FR4, TG170
Board Thickness	1.6 mm
Copper Thickness	1OZ
Min. Hole Size	5mil (0.125mm)
Min. Line Width/ Spacing	4mil (0.1mm)/5mil (0.125mm)
Solder mask/ Silkscreen Color	Green /No
Surface Finishing	Immersion gold
Min.Quantity of Order	No MOQ
Leadtime	12days for prototype, 18 days for mass production
Certificate	UL, ISO 9001, ISO 14001

10L PCB Stack Up

10L electric circuits STACK UP

Application

Military Tablet

Packing Details

Inner package: vacuum package+dryer

Outer package: carton package+Bulb package

More information about packing, pls visit price and answers>packing

Shipment Details

Rough weight

Layer	Specification	Kilogram/sq.m
6L	1.6mm FR4 1OZ	4.15
8L	1.6mm FR4 1.OZ	6.00
10L	1.8mm FR4 1.OZ	8.00
12L	2.0mm FR4 1.OZ	10.00

Shipping way

By DHL, UPS, Fedex, EMS

By Air

By Sea

More information about weight, shipping and freight, pls visit price and answers>shipment

Quality Control

DRC Check

Quality Control

FQC(Final Quality Control)

AOI(Automated optical inspection)

Electrical Testing

Certificated

More information quality control, pls visit quality>quality control flow

Related Parameter Values

pls visit e ngineering>Rigid PCB Capability

Sort	Item	Parameters
Panel size	Max panel size	Gold flash/plating：490×400mm
Panel size	Max panel size	HAL：1200×480mm
PCB thickness	Final pcb chickness	HAL：0.6~3.5mm
	Final pcb chickness	Gold flash/plating：0.4~3.5mm
	Thickness tolerance	0.4~1.0mm:±0.10mm
		1.01~1.6mm：±0.13mm
		1.61~3.5mm：±0.15mm
	Core thickness	≥0.11mm
	4layer	≥0.4mm
	6layer	≥0.8mm
	8layer	≥1.2mm
	Build-up board thickness	±0.10
	P-p	≥0.07mm
Hole size	Final hole size	Min 0.2mm,board thickness/hole size≤6:1
	Drilling hole size	0.20~6.5mm
	Drilling tolerance	±0.05mm
	Final hole size tolerance	PTHhole：φ0.20~1.60mm±0.075mmφ1.60~6.30mm: ±0.10mm
	Final hole size tolerance	NPTHhole：φ0.20~1.60mm±0.05mmφ1.60~6.50mm: ±0.05mm
	Drilling strip hole	Longth/width 2:1
		Min strip hole width 0.65mm
		Longth &width tolerance ±0.05mm
Cu thickness	Sur face cu thickness (base+plating)	1/2OZ≥38μm 1OZ≥51μm
		2 OZ≥81μm 3OZ≥112μm
		4OZ≥142μm
	Inner cu thinckness	1OZ≥25μm
		2OZ≥56μm
		3OZ≥91μm
Solder mask	Solder mask Color	PSI green, matte green,yellow,blue,red,black,matte black, white.
	Solder mask thickness	Surface line≥10µm
		surface line corner≥6µm
		surface board 10-25µm
		Green Solder mask bridge width: 3mil/HOZ 4mil/1OZ 5mil/2OZ, other color: 6mil
	Min.Soldermask opening	Green :2mil other color 3mil
	Plugged Dia.	Min:0.2㎜Max.:0.65㎜
	Legends width	≧0.2㎜
	Space from Hole to PAD	8mil
Finishing	HASL with lead	Tin 63% Lead37%
	HASL free lead	surface thickness>=0075µm
	OSP	size max 500600mm,min 20030 mm
	Electric/plating Gold
	Immersion Gold
	Immersion Tin
	Immersion silver
	Hard gold plating for connector( gold finger)
Profile	Cnc
	Punching
	V-CUT
Testing	Probe fly
Testing	Testing jig

More information about capability, pls visit e ngineering>Rigid PCB Capability

Help our customers take their electric circuits designs from initial concept to working prototype fast, with minimum error risk and at low cost is part of our goal – the continuous creation of value for our customers.
