4L fabrication begins with the selection of an inner layer core – or thin laminate..
Home > Products > 4 Layer PCBs

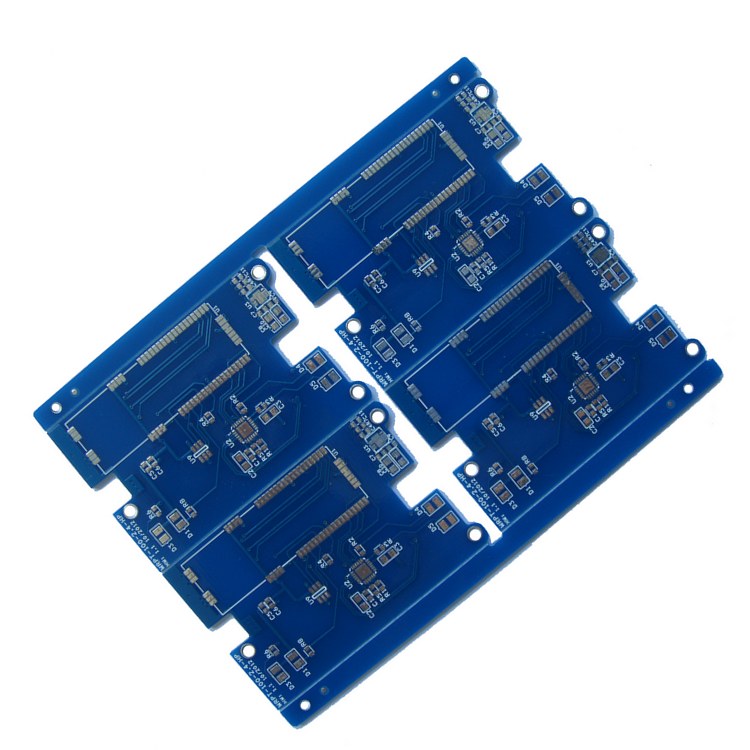

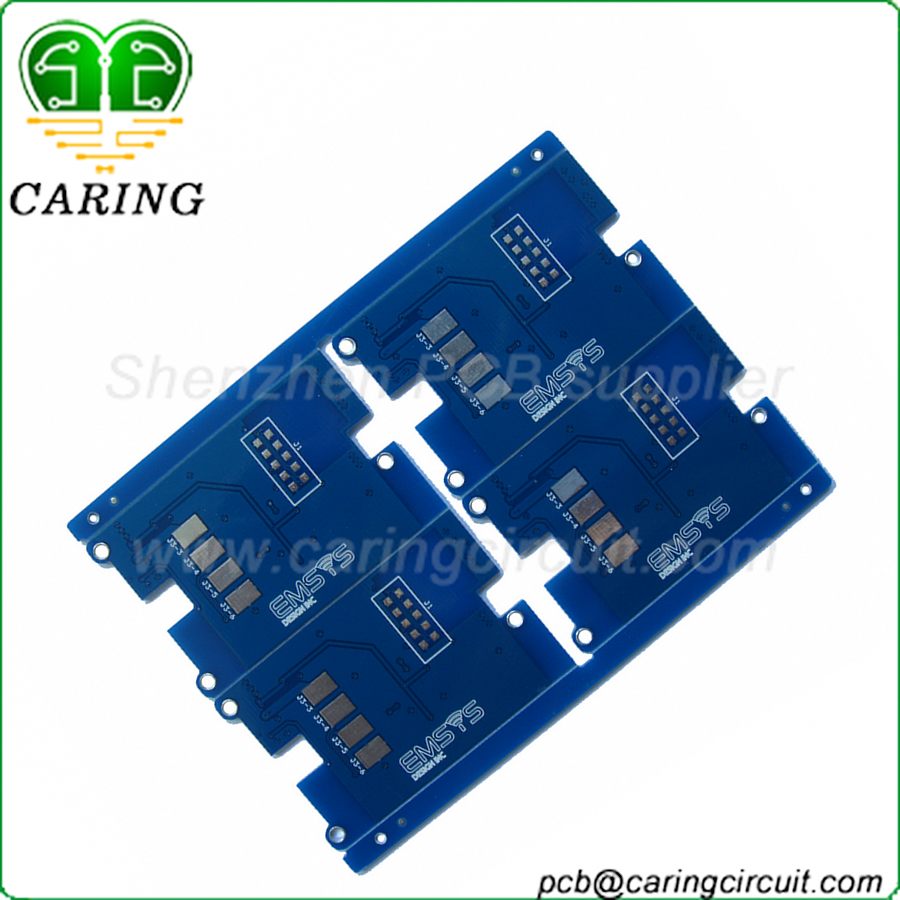

4L Electronic PCB Board NO.:prototype
-
- Product Name:4L Electronic PCB Board
- Model No.:prototype
- Product Abstract:
- 【Printing】 【Close】

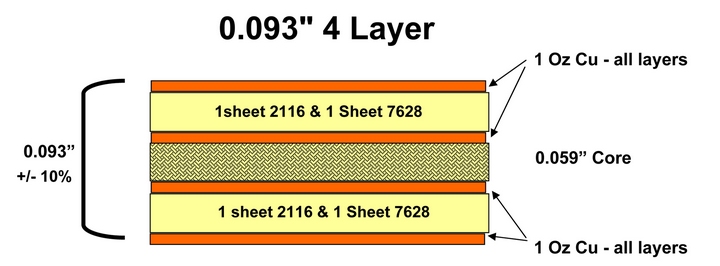

4L fabrication begins with the selection of an inner layer core – or thin laminate material of the proper thickness. Cores can vary from 0.038” to 0.005” thick and the number of cores used will depend upon the board’s design. 4L electronic pcb board is one of our main proucts we export. Lead time 10days is average,it is even faster than you made in local.
|
|
|
|
Details
Quick Details of 4L Electronic PCB Board
|
Quantity |
4L Electronic PCB Board prototype |
|
Place of Origin |
Shenzhen, China |
|
Base Material |
4L, FR4,TG135 |
|
Board Thickness |
1.6 mm |
|
Copper Thickness |
1OZ |
|
Min. Hole Size |
4mil (0.1mm) |
|
Min. Line Width/ Spacing |
4mil (0.1mm)/5mil (0.1mm) |
|
Solder mask/ Silkscreen Color |
Blue/ White |
|
Surface Finishing |
HASL |
|
Min.Quantity of Order |
No MOQ |
|
Leadtime |
7days for prototype, 10days for mass production |
Standard of 4L Electronic PCB Board fabrication
IPC-4101 Specification for base materials rigid / multi-layer
IPC-600G Acceptability of Printed Boards / Class 2
IPC-6011 Generic Performance Specification for Printed Wiring Boards
IPC-6012B -Qualification and Performance Specification for Rigid Boards/class 2
IPC6013A- Qualification and Performance Specification for Flexible Printed Boards/class 2
IPC6016- Qualification and Performance Specification for High Density Interconnect(HDI) Layers or Boards/ class 2
IPC-SM-840 Qualification and Performance of permanent polymer coatings
MIL-PFR-55110 Military Performance and Specifications-Tucson
IPC-6018 Microwave End Product Board Inspection and Test-Tucson
IPC-TM-650 Test methods manual.
Packing Details of 4L Electronic PCB Board
Inner package: vacuum package+dryer
Outer package: carton package+Bulb package
More information about packing, pls visit price and answers>packing
Shipment Details
Rough weight
| Layer | Specification | Kilogram/sq.m |
| 1L | 1.60mm FR1 1OZ | 3.00 |
| 2L | 1.6mm FR4 1OZ | 3.55 |
| 4L | 1.6mm FR4 1.OZ | 3.88 |
| 6L | 1.6mm FR4 1OZ | 4.15 |
| 8L | 1.6mm FR4 1.OZ | 6.00 |
| 10L | 1.8mm FR4 1.OZ | 8.00 |
| 12L | 2.0mm FR4 1.OZ | 10.00 |
Shipping way
By DHL, UPS, Fedex, EMS
By Air
By Sea
More information about weight, shipping and freight, pls visit price and answers>shipment
Quality Control
DRC Check
Quality Control
FQC(Final Quality Control)
AOI(Automated optical inspection)
Electrical Testing
Certificated
More information quality control, pls visit quality>quality control flow
Related Parameter Values
pls visit engineering>Rigid PCB Capability
