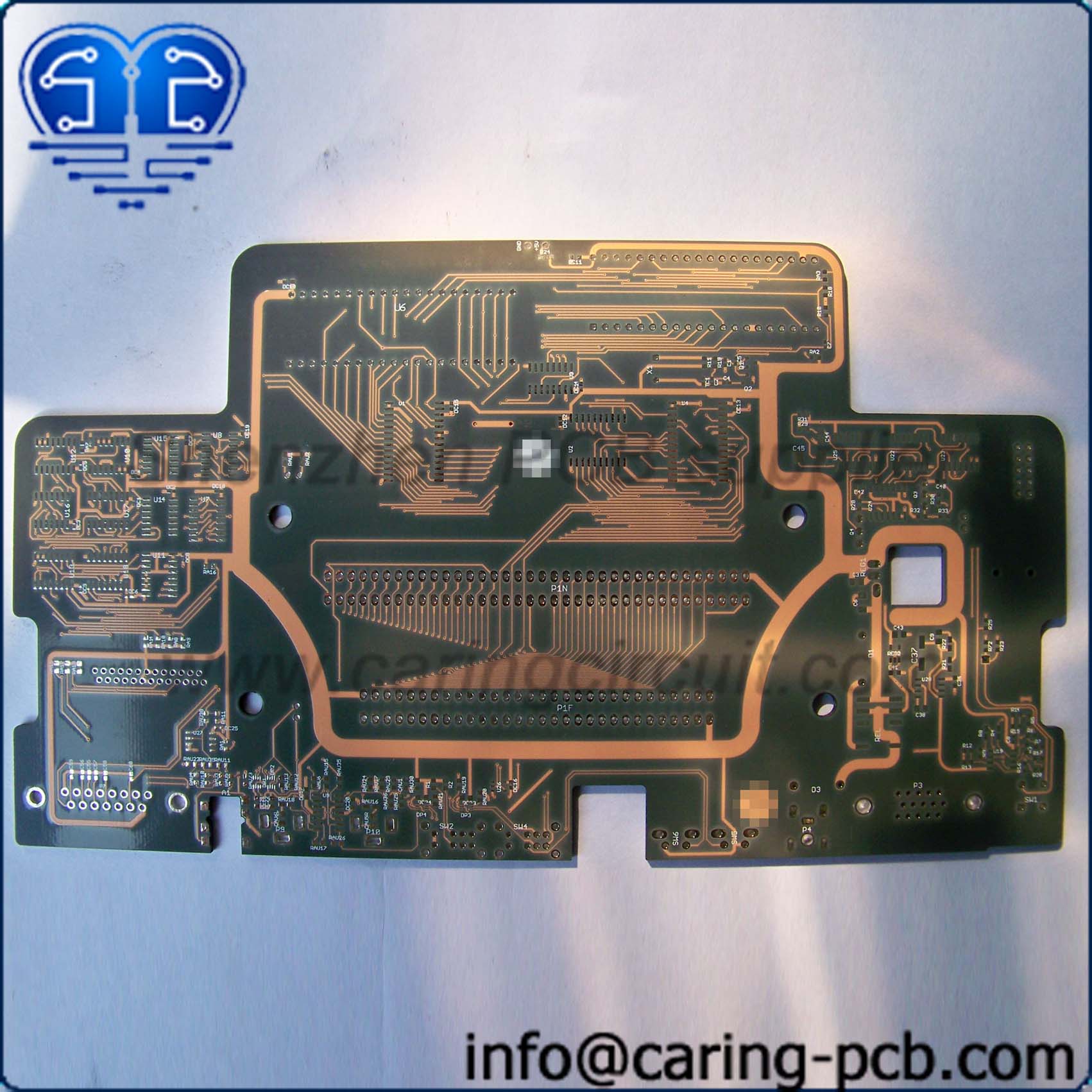

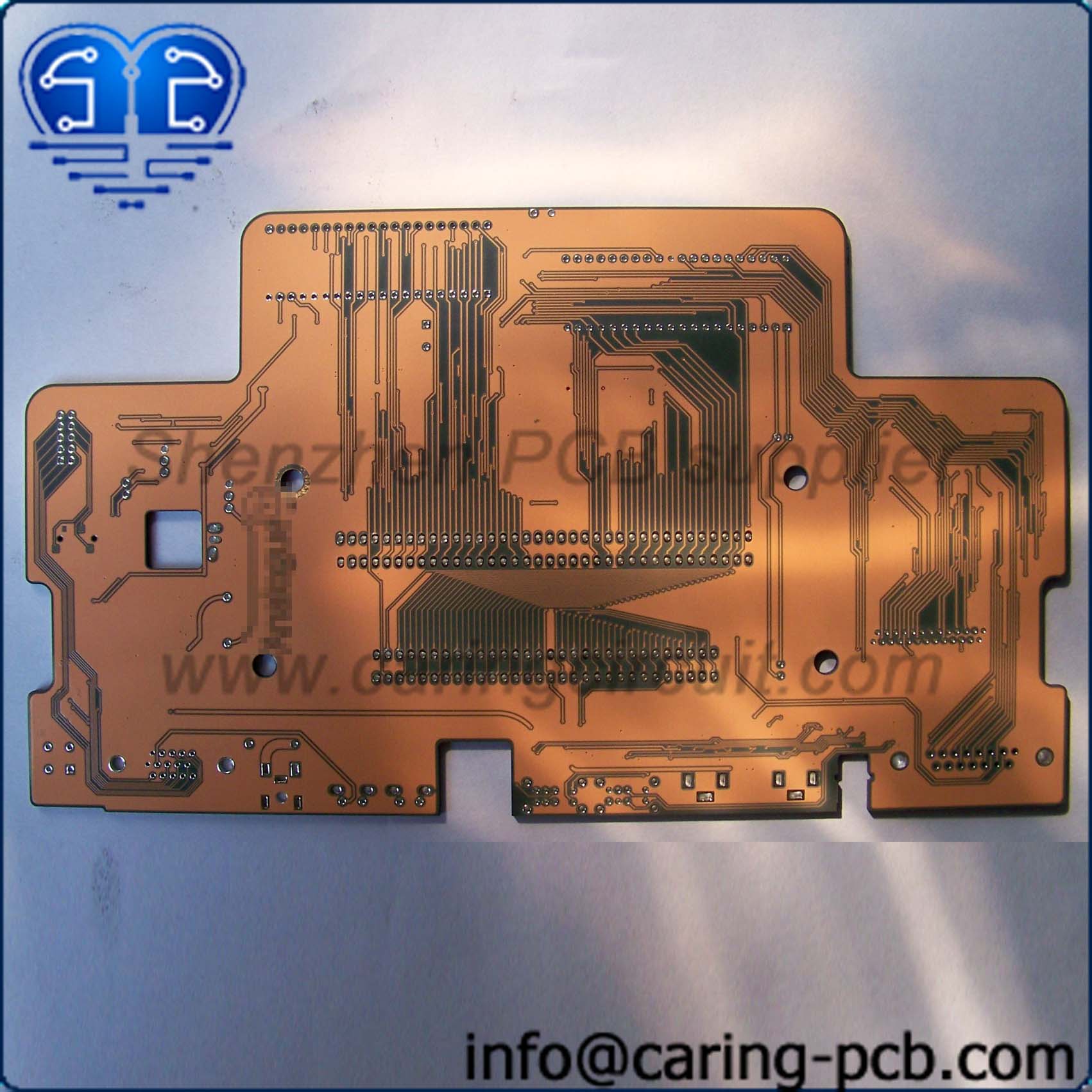

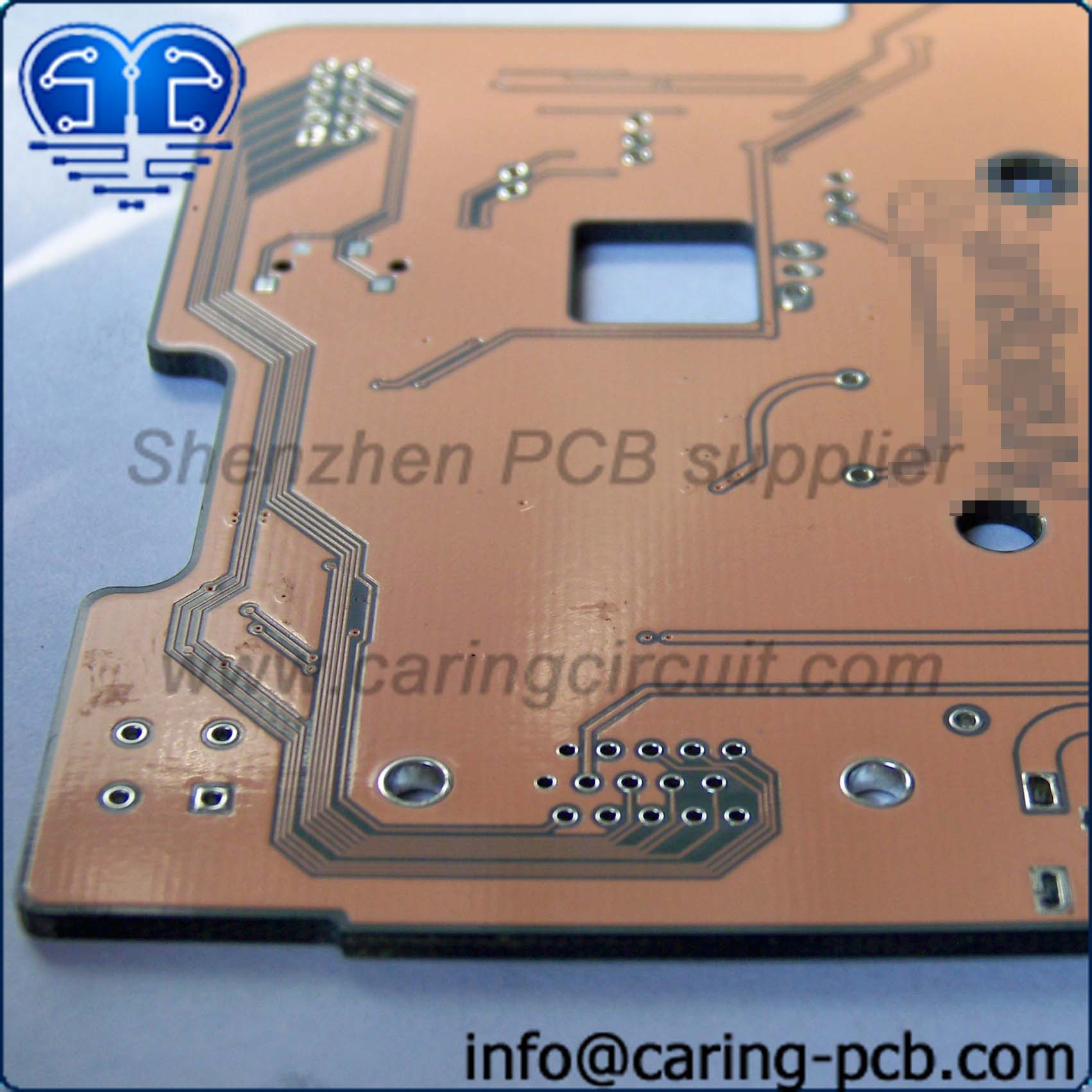

Black Core Fr4 PCB

Product Name:Black Core Fr4 PCB
Product Abstract:

Get the best black core fr4 circut board pcb available from Caring Circuit. Browse our PCB with sepcial black cores. Check out the latest specs and prices of black CCL PCB.

【Printing】【Close】

Details

Quick Details

Brand Name	Caring circuit
Place of Origin	Shenzhen, China
Base Material	2L, Black core FR4, VT-42 Laminate, TG140
Board Thickness	1.8 mm
Copper Thickness	1OZ
Min. Hole Size	5mil (0.125mm)
Min. Line Width/ Spacing	5mil (0.125mm)/5mil (0.125mm)
Solder mask/ Silkscreen Color	Solder mask is transparent as well / white silkscreen
Surface Finishing	Lead Free HASL
Min.Quantity of Order	No MOQ
Leadtime	7days for prototype, 10days for mass production
Certificate	UL, ISO 9001, ISO 14001

Black core PCB material introduction

Dicy Cured System

Standard FR-4 (Tg140)

Core Thickness: .002”(0.05mm) to .200” (5mm), available in sheet or panel form

Copper Foil: 1/4oz to 12oz

Prepregs are available in roll or panel form

Application

Computer, Communication equipment,Instrumentation, TV, VCR,Electronic game machine,LCD, Automotive, etc

Packing Details

Inner package: vacuum package+dryer

Outer package: carton package+Bulb package

More information about packing, pls visit price and answers>packing

Shipment Details

Rough weight

Layer	Specification	Kilogram/sq.m
1L	1.60mm FR1 1OZ	3.00
2L	1.6mm FR4 1OZ	3.55
4L	1.6mm FR4 1.OZ	3.88
6L	1.6mm FR4 1OZ	4.15
8L	1.6mm FR4 1.OZ	6.00
10L	1.8mm FR4 1.OZ	8.00
12L	2.0mm FR4 1.OZ	10.00

Shipping way

By DHL, UPS, Fedex, EMS

By Air

By Sea

More information about weight, shipping and freight, pls visit price and answers>shipment

Quality Control

DRC Check

Quality Control

FQC(Final Quality Control)

AOI(Automated optical inspection)

Electrical Testing

Certificated

More information quality control, pls visit quality>quality control flow
