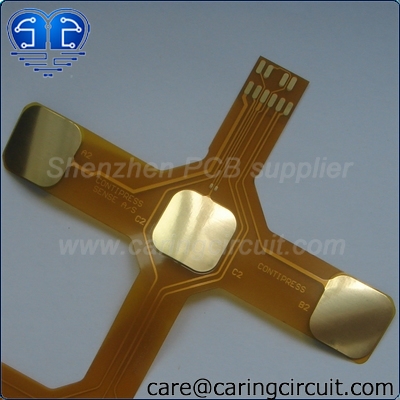

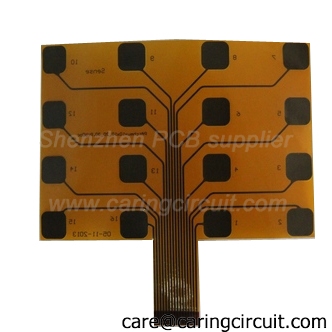

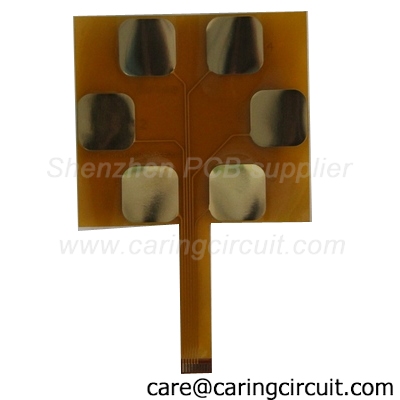

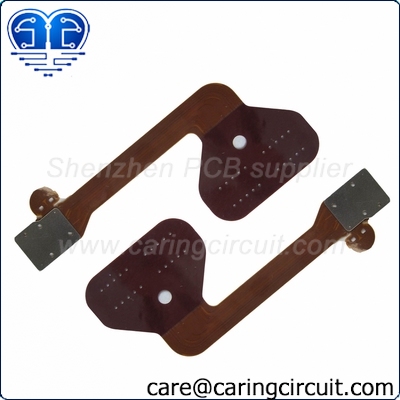

A Flexible pcb is a patterned arrangement of printed circuits and components that utilizes..
Products: 1L flexible flat cable in array Material: Polymide..

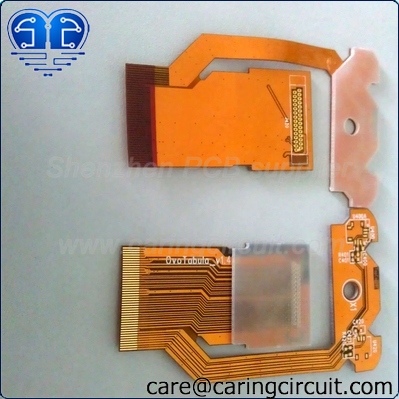

FPC and RFPC, also known as flex and rigid-flex electronic circuit, is a technology for..

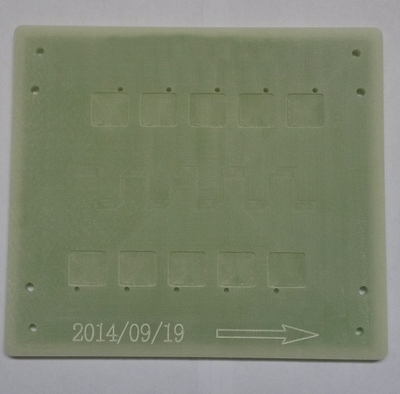

Glass fiber FR4 material for resolder fixture Wooden holder with screws
Home > Products > Flex/ Rigid-flex PCBs & Resolder fixtures

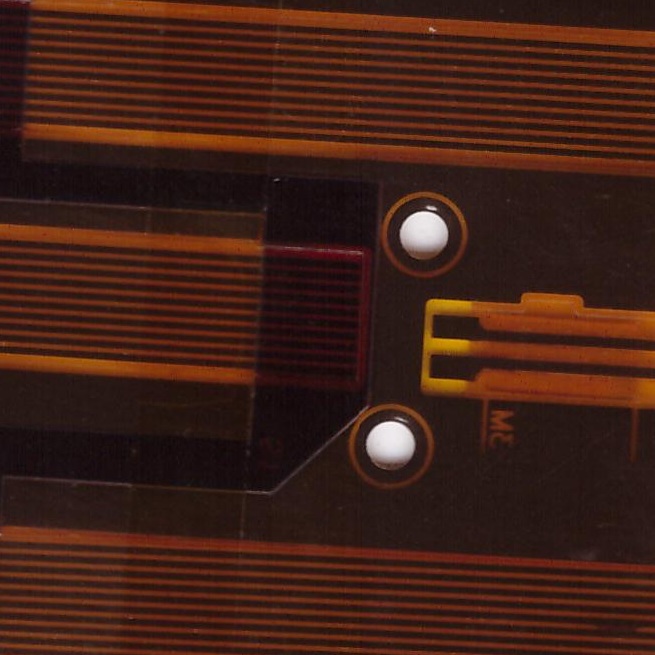

Flexible flat cable in array NO.:FFC
-
- Product Name:Flexible flat cable in array
- Model No.:FFC
- Product Abstract:
- 【Printing】 【Close】

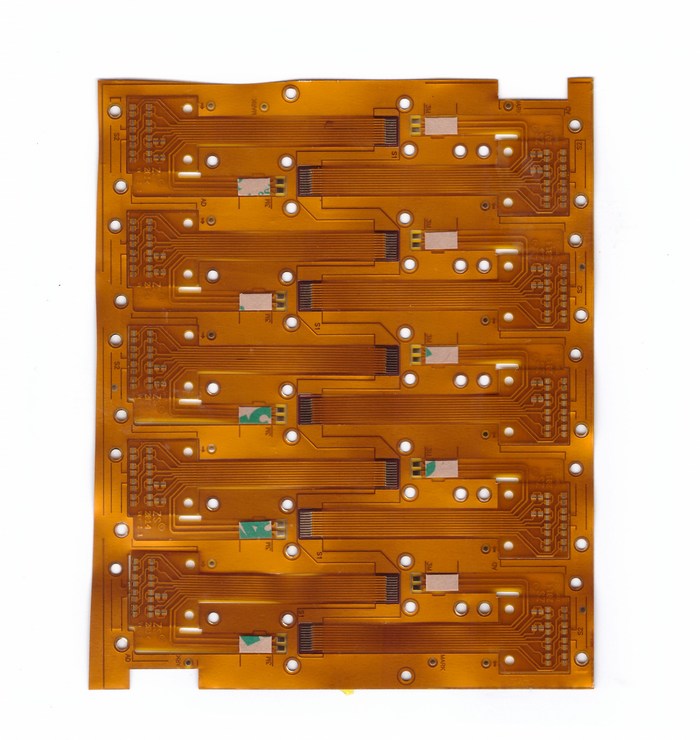

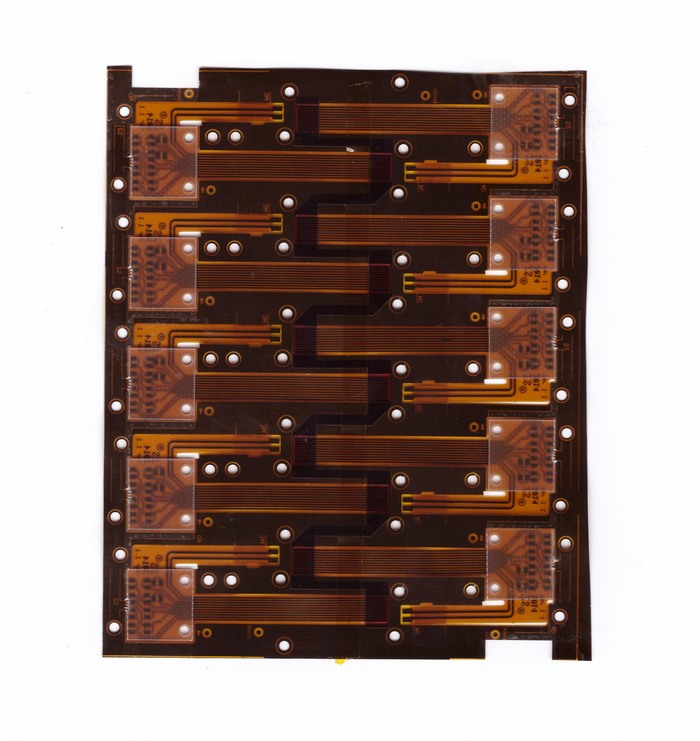

Products: 1L flexible flat cable in array
Material: Polymide
Stiffeners: 0.8mm FR4 1pc + 0.2mm PI 1pc
Gold connector finished thickness: 0.3mm+/-0.03mm
Copper: 1 OZ Rolled copper Basic
Surface: Chem.Ni/Au
Soldermask: 25um PI coverlay + AdhesiveSilkscreen: No
Delivery by pieces.Lead time: 5 working days
|
|
|
|
|
Details
| Qty | Item # | Description | Unit Price | Line Total |
| 1 | flexible flat cable | 1L FFC , immersion gold in array with 10pcs deponds on engineer's design | $ 10.00 | $ 10.00 |
| 1 |
|
start up cost ( engineersing,films,e-tested all included. ) | $ 90.00 | $ 90.00 |

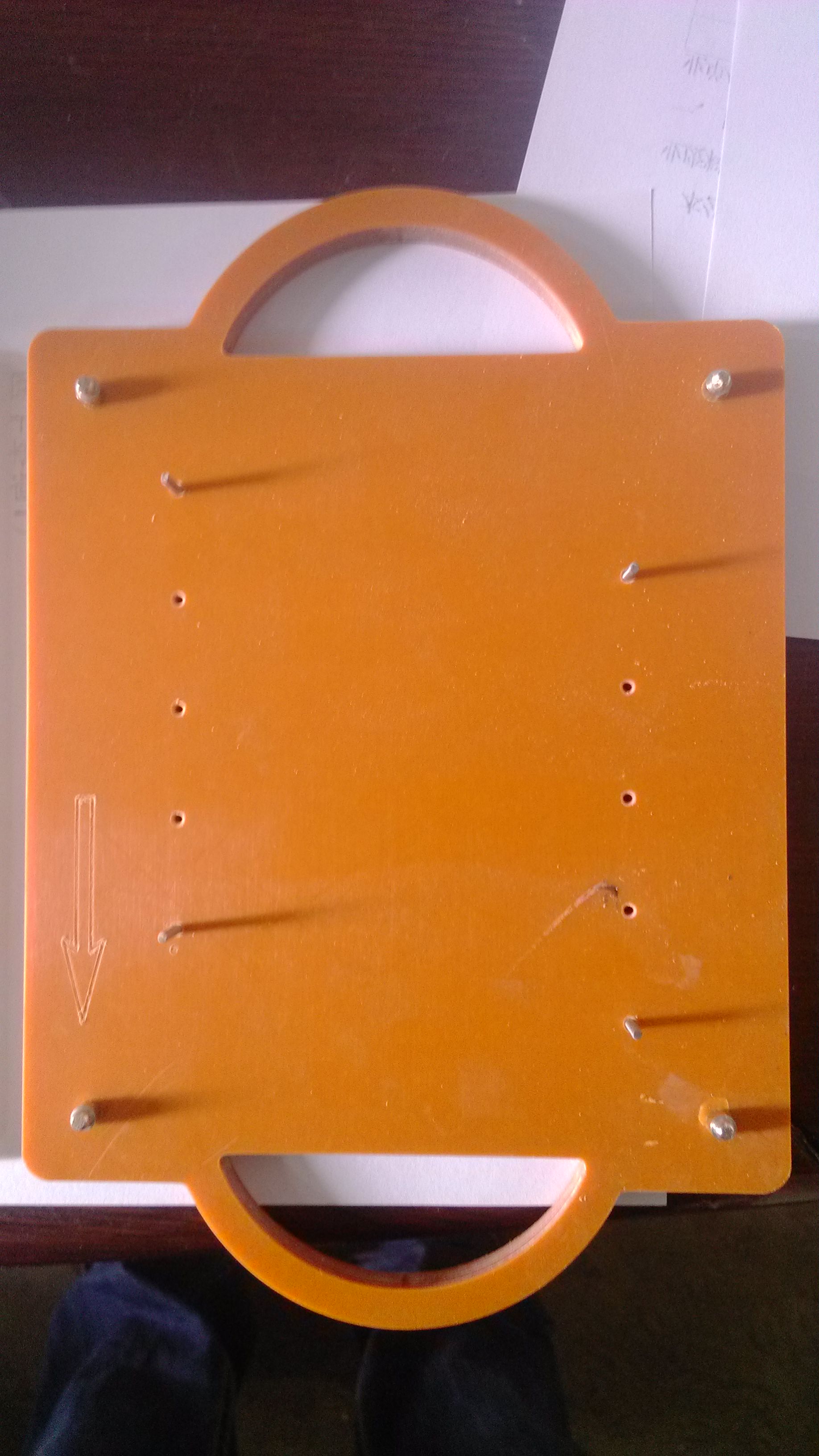

| 1 | Assembly fixture of FFC | glass fiber material and fixture holder | $ 60.00 | $ 60.00 |
| 1 | FFC Frame stencil | laser cut stainless steel stencil 29x29inch | $ 130.00 | $ 130.00 |
| DHL freight from Door to Door , shipping time 3-4 days, Approx. 5 kg ( size not weight ) | $ 50.00 | |||
| Total | $ 340.00 | |||
| If pay by Paypal, pls add 4.4% paypal fee, then total will be | $ 354.96 | |||
