Home > Products > Flex/ Rigid-flex PCBs & Resolder fixtures
polymide pi fpc gold connectors
Details

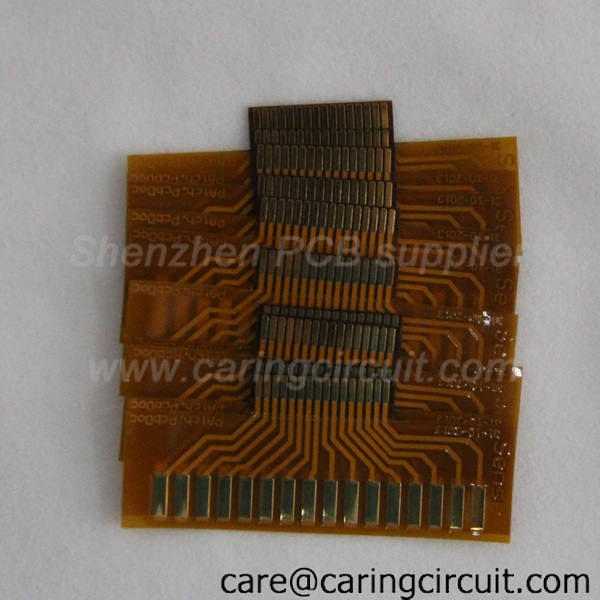

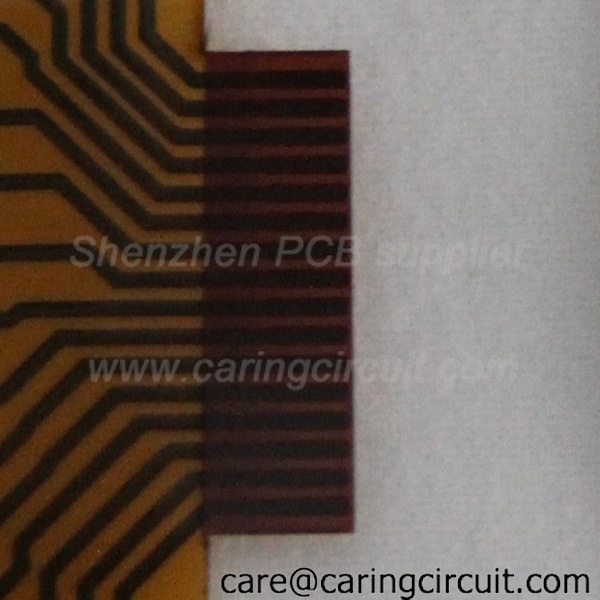

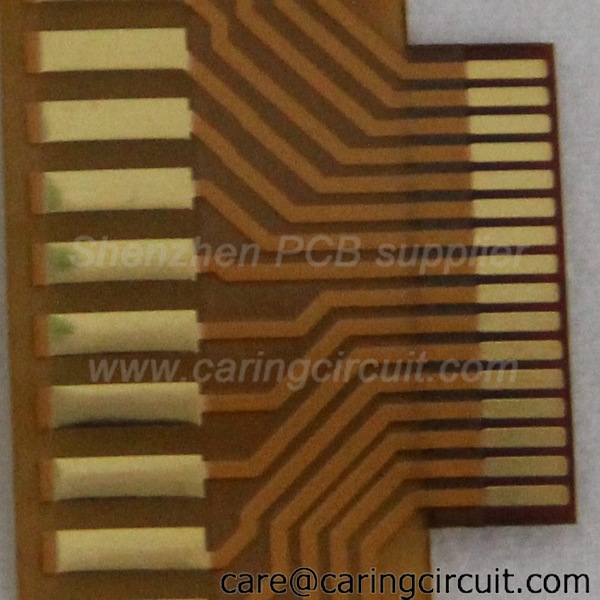

P/N: Single-layer Polymide PI FPC Gold Connectors
One conductive layer, either bonded between two insulating layers or uncovered on one side.Access holes to conductors may be on either one or both sides.
Access holes on both sides of a single-layer are more expensive since the substrate must be drilled or punched separately.
Stiffeners, pins, connectors, components are optional
Polymide FPC Benefits
Package Size Reduction
Cost Reduction
Replacement for Wires & Wire Harness Assemblies
High Temperature Applications
Weight Reduction
High Density Applications
Reliability & Durability
Several PCB Base Materials and Technologies are Available:
Material thickness: starting with 0,0125mm polyimide substrate plus adhesive and copper
Number of layers: 1- to 6-layers flexible multilayer PCB
Through hole plating (THP): yes
Solder mask: yes
Surface finish: immersion tin, OSP, immersion gold
Copper thickness: 9µm, 12µm, 18µm, 35µm
Material types: Polyimide (Kapton) / Polyester (PET)
Structures: >= 3mil
Drill size: >= 0,10mm
Mechanical process: laser, punching (soft or hard tool), hand cut
