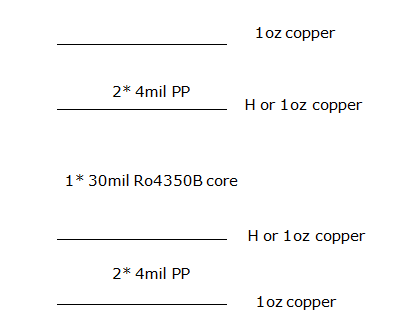

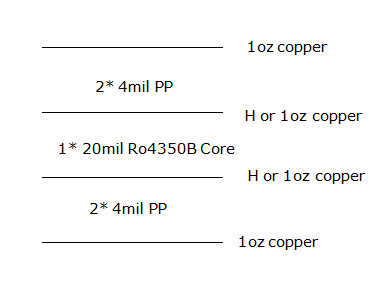

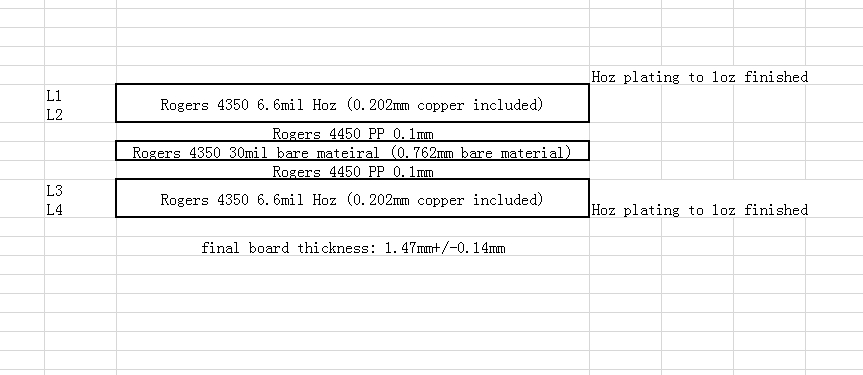

Rogers Ro4350B 4 layer NO.:China PCB factory

Rogers Ro4350B

The market leading material for base station power amplifier designs

Low loss, FR-4 processable and UL 94V-0 rated material

Dk 3.48 (+/- 0.05); Df 0.0037@10GHz

*0.004” (0.101mm),
0.0066” (0.168mm)
0.010” (0.254mm),
0.0133” (0.338mm),
0.0166” (0.422mm),
0.020”(0.508mm),
0.030” (0.762mm),
0.060”(1.524mm)

USD 200 for 2L : 5days

USD 300 for 4L : 6days

USD 400 for 6L : 7days

Rogers PCB prototypes price will be more or less according to stackup, impedance, special technologies,etc.

Send your inquiry directly to us
