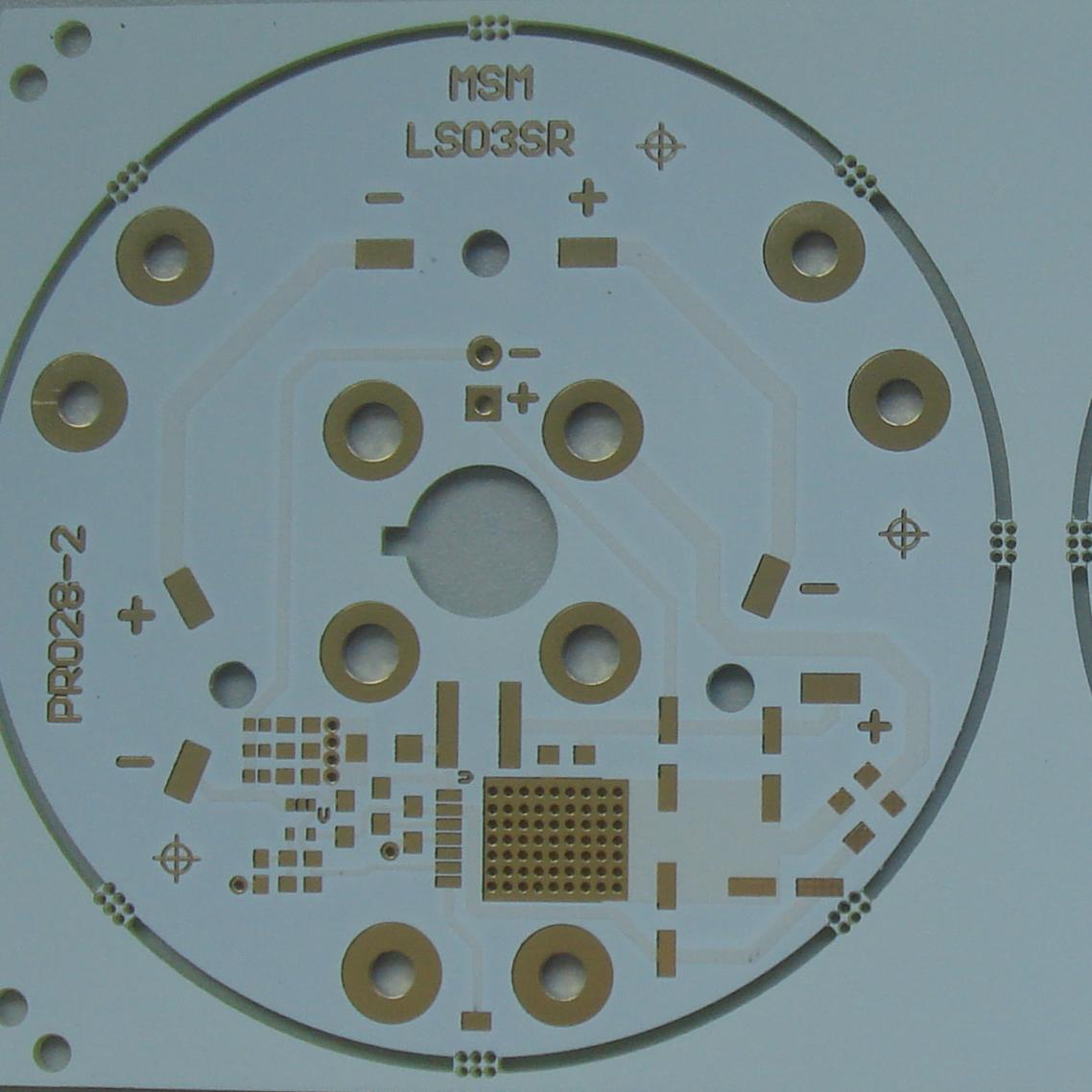

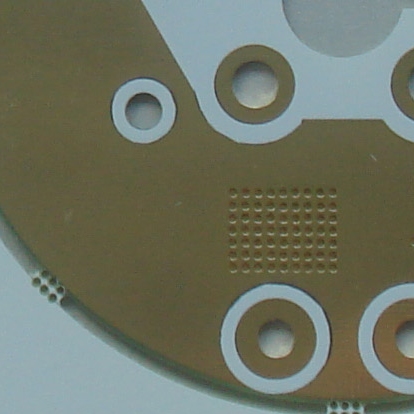

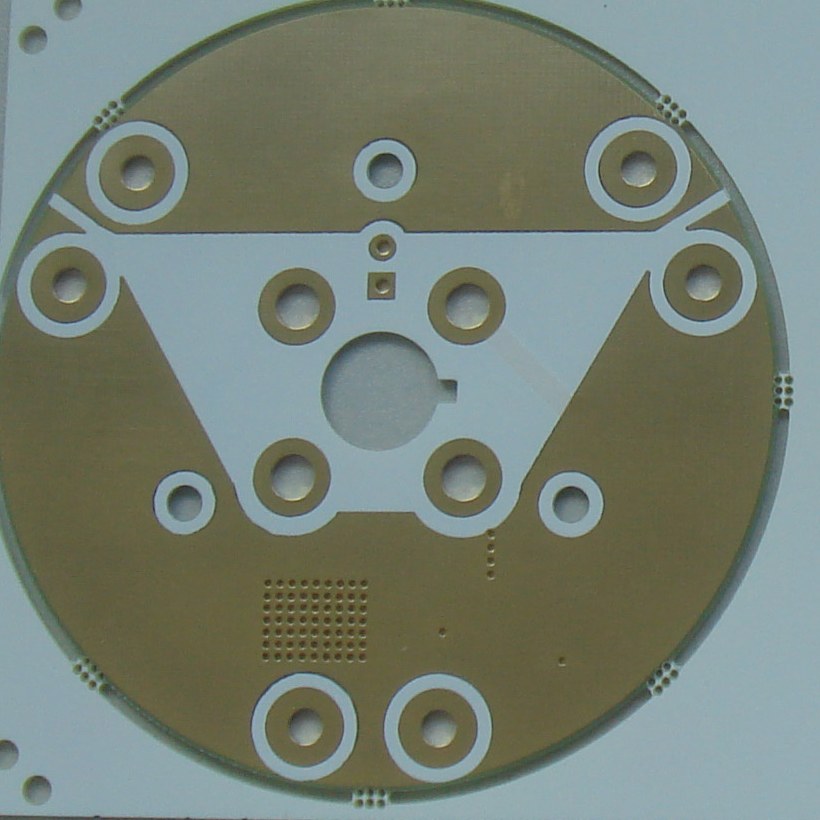

Aluminum base PCB,also named metal clad PCB, insulated metal substrate PCB (IMS PCB or IMPCB), thermally conductive PCBs,
etc. It is generally including single layer, double layer and multilayer.
Operating theory: The power device surface mounting on circuit layer, it is ideally suited
for the mounting of high power light emitting diodes (LEDs) easily
dissipating the heat generated by power devices.
Thermally Conductive PCBs can be advantageous to use for their ability to integrate a dielectric polymer layer with a high thermal conductivity for a lower thermal resistance.
Metal core PCBs transfer heat 8 to 9 times faster than FR4 PCBs. MCPCB laminates dissipate heat, keeping heat generating components cooler which results in increased performance and life.
Base material: Aluminum/Copper/Iron Alloy
Thermal Conductivity (dielectrial layer): 0.8, 1.5, 2.0, 3.0 W/m.K.
Board Thickness: 0.5mm~3.0mm(0.02"~0.12")
Copper thickness: 0.5 OZ, 1.0 OZ, 2.0 OZ, 3.0 OZ
Outline: Routing, punching, V-Cut
Soldermask: White/Black/Blue/Green/Red Oil
Legend/Silkscreen Color: Black/White
Surface finishing: Immersion Gold, HASL, OSP
Max Panel size: 600*500mm(23.62"*19.68")
Packing: Vacuum/Plastic bag
Samples L/T: 5~7 Days
MP L/T: 6~8 Days
1. Audio device: Input, output amplifier, balanced amplifier, audio amplifier, preamplifier, power amplifier.
2. Power Supply: Switching regulator, DC / AC converter, SW regulator, etc.
3. Communication electronic equipment: High-frequency amplifier, filtering appliances, transmitter circuit
4. Office automation equipment: Motor drive, etc.
5. Automobile: Electronic regulator, ignition, power supply controller, etc.
6. Computer: CPU board, floppy disk drive, power supply devices, etc.
7. Power Modules: Inverter, solid state relays, rectifier bridges.
8. Lamps and lighting: As the advocated promotion of energy-saving lamps, a variety of colorful energy-saving LED lights are well received by the market, and aluminum pcb used in LED lights also begin large-scale applications.
