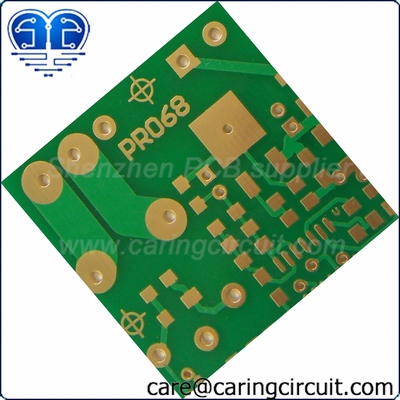

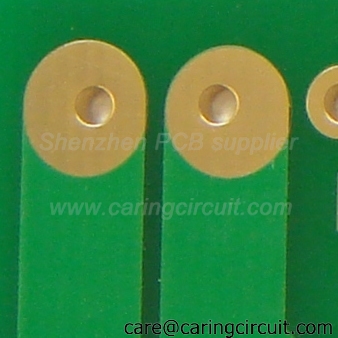

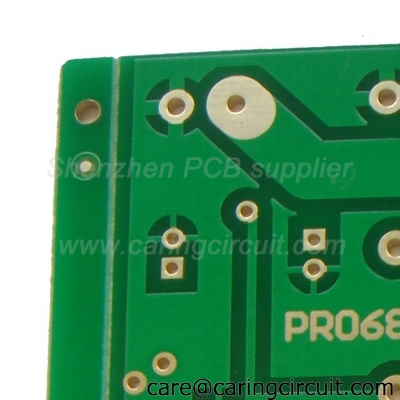

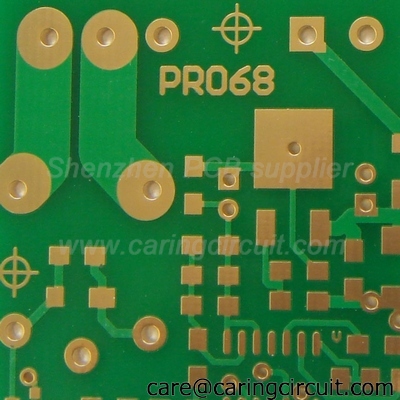

what is an electronic circuit with gold? Immersion Gold electronic circuit is with process in which gold is immersioned on electroless Ni above copper as a surface finish for printed circuit board and package applications. Standard thickness is 1-3μin. Max. 8μin. If your boards need it thicker than 8μin. You have to change to plating gold.
|
|
|
|
Details

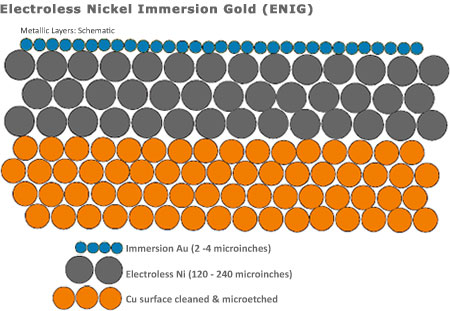

Immersion gold Structure
Benefit of Immersion gold/ENIG/Chem.Ni/Au Electronic Circuit
A planar, solder-able finish
Good shelf life - Does not tarnish
Precious metal electrical contact surface (1.5 million actuation)
Al wire bond-able
Nickel strengthens the PTH – acts as a rivet
Nickel barrier prevents copper dissolution during wave solder & rework
Withstands multiple heat cycles well
EMI shield mounting surface
Disadvantage of Immersion gold/ENIG/Chem.Ni/Au Electronic Circuit
Expensive
Not Wire-Bondable
Should Not Be Used on ≤1.0mm Pitch; Black Pad Issues
Waste Treatment of Nickel
Cannot be Reworked at PCB Fabricator
Nickel is a Suspected Carcinogen
Not Optimal for Higher Speed Signals
Packing Details of Electronic Circuit
Inner package: vacuum package+dryer
Outer package: carton package+Bulb package
More information about packing, pls visit price and answers>packing
