Home > Products > HAL,Gold, Silver, OSP, etc. PCBs

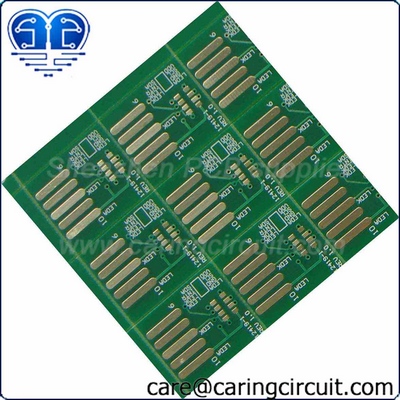

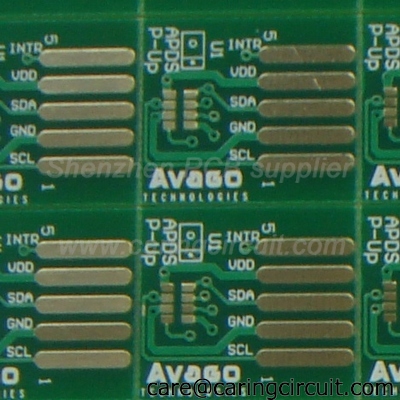

Hard Gold PCB NO.:Gold-003
|
|
|
Details
Intorduction of hard Gold
Hard Gold. We also call it Flash Gold, Electrolytic Gold, Full body Hard Gold, Tab Gold, Selective Gold.
An important Electrolytic process of hard gold is, all copper surfaces to be plated have to be electrically connected to a rectifier ( power supply), unless" gold as etch resist" process is used. Unplated copper must be covered by mask or resist. gold has grain stiffeners and brighteners added.
Advantages of hard gold
- Lead free (No Pb)
- Long shelf life
- Hard durable surface
Disadvantages of hard gold
- Expensive
- Extra processing/Labor cost inscreasing
- Use of resist / tape
- Plating/Bus bars
- Difficulty to mix with other surface finish.
- Demarcation
Applications
It is widely used for circuitboards with connectors such as PC circuitboards, hard disk circuitboards .etc
Packing
Inner package: vacuum package+dryer
Outer package: carton package+Bulb package
More information about packing, pls visit price and answers>packing
Shipment Details
Rough weight
| Layer | Specification | Kilogram/sq.m |
| 1L | 1.60mm FR1 1OZ | 3.00 |
| 2L | 1.6mm FR4 1OZ | 3.55 |
| 4L | 1.6mm FR4 1.OZ | 3.88 |
| 6L | 1.6mm FR4 1OZ | 4.15 |
| 8L | 1.6mm FR4 1.OZ | 6.00 |
| 10L | 1.8mm FR4 1.OZ | 8.00 |
| 12L | 2.0mm FR4 1.OZ | 10.00 |
Shipping way
By DHL, UPS, Fedex, EMS
By Air
By Sea
More information about weight, shipping and freight, pls visit price and answers>shipment
Quality Control
DRC Check
Quality Control
FQC(Final Quality Control)
AOI(Automated optical inspection)
Electrical Testing
Certificated
More information quality control, pls visit quality>quality control flow
